Product overview

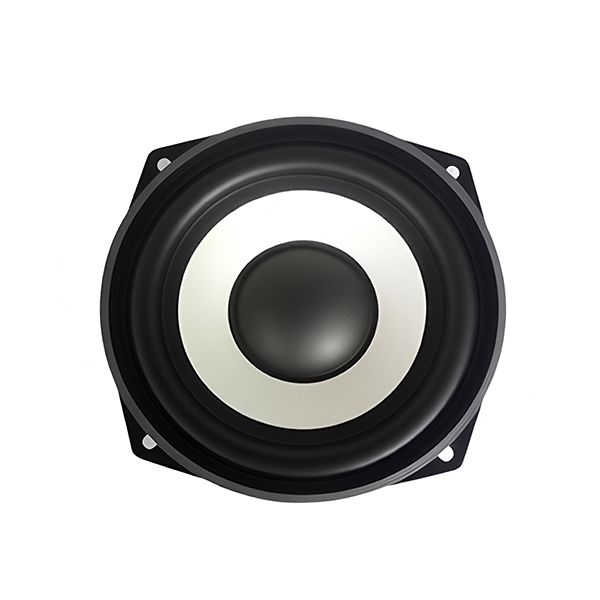

ZEH supplies 3.5 inch speaker drivers with rounded-square mounting frames for integrated audio products. This construction combines a light-coloured circular cone, a dark central dome and corner fixing points. We review the required operating band, amplifier and enclosure together, with 4 Ω and 8 Ω configurations for project selection.
Key features
- 3.5 inch size reference for project selection.
- Rounded-square flange with corner mounting holes.
- Light-coloured cone with a prominent dark central dome.
- 4 Ω and 8 Ω impedance configurations.
Built around your product
The 3.5 inch size reference is a starting point for selection; the complete frame and fixing dimensions define the installation. We review the mounting opening, supporting flange surface and available rear space against your housing drawing.
We also work with your required operating band and system layout. Whether you need the driver to cover a broad audio band or serve a more focused role, we discuss the amplifier, enclosure and any crossover requirements before selecting the project configuration.
Customization for your project
Share the required sound output, operating-band target, mounting-hole pattern and installation depth. Include the amplifier load, drive conditions and cavity information. We assess the mechanical and electrical requirements together and agree which configuration to develop or sample.
Applications
For audio assemblies using a 3.5 inch framed cone driver. ZEH can help assess the driver’s role within your system and coordinate the mounting interface with the host enclosure.
Discuss your project with ZEH
Need a 3.5 inch driver for your design? Send us your housing drawing, amplifier details and sound requirements. We will help you define the appropriate configuration for your product.
